SDSC-Argonne StarGate Demo at SC09 Shows How to Keep Astrophysics Data Out of Archival 'Black Holes'

aReserved Bandwidth on ESnet Makes Possible Multi-Gigabit Streaming Between Argonne, SC Conference in Portland

San Diego, Nov. 24, 2009 -- As both an astrophysicist and director of the San Diego Supercomputer Center (SDSC), Mike Norman understands two common perspectives on archiving massive scientific datasets. During a live demonstration at the SC09 conference of streaming data simulating cosmic structures of the early universe, Norman said that some center directors view their data archives as “black holes,” where a wealth of data accumulates and needs to be protected.

StarGate at SC09

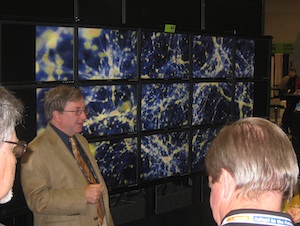

SDSC Director and astrophysicist Mike Norman (at OptIPortal display wall) at SC09. His demonstration was part of an effort to establish end-to-end workflows that leverage high-performance computing and visualization resources, high-speed networks, and advanced displays spread across the country.

But as a leading expert in the field of astrophysics, he sees data as intellectual property that belongs to the researcher and his or her home institution — not the center where the data was computed. Some people, Norman says, claim that it’s impossible to move those terabytes of data between computing centers and where the researcher sits. But in a live demo in which data was streamed over a reserved 10-gigabits-per-second provided by the Department of Energy’s ESnet (Energy Sciences Network), Norman and his graduate assistant Rick Wagner showed it can be done.

While the scientific results of the project are important, the success in building reliable high-bandwidth connections linking key research facilities and institutions addresses a problem facing many science communities.

“A lot of researchers stand to benefit from this successful demonstration,” said Eli Dart, an ESnet engineer who helped the team achieve the necessary network performance. “While the science itself is very important in its own right, the ability to link multiple institutions in this way really paves the way for other scientists to use these tools more easily in the future.”

Flash player required click here to download
To view a Flash video of the computer animation streamed to the SDSC OptIPortal, click on the image above. For a streaming video version of the same simulation, click here [Windows Media and broadband connection required].
“This couldn’t have been done without ESnet,” Wagner said. Two aspects of the network came into play. First, ESnet operates the circuit-oriented Science Data Network, which provides dedicated bandwidth for moving large datasets. However, with numerous projects filling the network much of the time for other demos and competitions at SC09, Norman and Wagner took advantage of OSCARS, ESnet’s On-Demand Secure Circuit and Advance Reservation System.

“We gave them the bandwidth they needed, when they needed it,” said ESnet engineer Evangelos Chaniotakis. The San Diego team was given two two-hour bandwidth reservations on both Tuesday, Nov. 17, and Thursday, Nov. 19. Chaniotakis set up the reservations, then the network automatically reconfigured itself once the window closed.

At the SDSC booth, the live streaming of the data drew a standing-room-only crowd as the data was first shown as a 4,096^3 cube containing 64 billion particles and cells. But Norman pointed out that the milky white cube was far too complex to absorb, then added that it was only one of numerous time-steps. In all, the data required for rendering came to about 150 terabytes of data.

StarGate

This simulation follows the growth of density perturbations in both gas and dark matter components in a volume 1 billion light years on a side beginning shortly after the Big Bang and evolved to half the present age of the universe. It calculates the gravitational clumping of intergalactic gas and dark matter modeled using a computational grid of 64 billion cells and 64 billion dark matter particles. The simulation uses a computational grid of 4096^3 cells and took over 4,000,000 CPU hours to complete.

The visualization shows the density value, whose range spans over 6 orders of magnitude. The animation of the evolution was made from 148 terabytes of data generated on Kraken at the National Institute for Computational Sciences and transferred to Argonne over ESnet. The renderingwas performed on Eureka at the Argonne Leadership Computing Facility.

In real time, the data was rendered on the Eureka Linux cluster at the Argonne Leadership Computing Facility and reduced to one-sixty-fourth of the original size for a 1,024^3 representation, making it more manageable and able to be explored interactively. The milky mesh was shown to contain galaxies and clusters linked by sheets and filaments of cosmic gases. Its all clearer in the movie, which you can see here (other resolutions at the bottom of this page).

The project, Norman explained, is aimed at determining whether the signal of faint ripples in the universe known as baryon acoustic oscillations, or BAO, can actually be observed in the absorption of light by the intergalactic gas. It can, according to research led by Norman, who said they were the first to determine this. Such a finding is critical to the success of a dark energy survey known as BOSS, the Baryon Oscillation Spectroscopic Survey. The results of his proof-of-concept project, Norman said, “ensure that BOSS is not a waste of time.”

Creating a simulation of this size, even using the petaflops Cray XT5 Kraken system at the University of Tennessee can take three months to complete as it is run in batches as time is allocated, Norman said. The data could then be moved in three nights to Argonne for rendering. The images were then streamed to the SDSC OptiPortal for display.. Norman said the next step is to close the loop between the client side and the server side to allow interactive use. But the hard work — connecting the resources with adequate bandwidth — has been done, as evidenced by the demo, he noted.

But it wasn’t just an issue of bandwidth, according to ESnet’s Dart. “We did a lot of testing and tuning,” said Dart. ESnet is managed by Lawrence Berkeley National Laboratory (LBNL).

Other contributors to the demo were Joe Insley of Argonne National Laboratory (ANL), who generated the images from the data, and Eric Olson, also of Argonne, who was responsible for the composition and imaging software. Network engineers Linda Winkler and Loren Wilson of ANL and Thomas Hutton of SDSC worked to set up and tune the network and servers before moving the demonstration to SC09. The project was a collaboration between ANL, Calit2, ESnet/LBNL, the National Institute for Computational Science, Oak Ridge National Laboratory and SDSC.

Additional support from Calit2 staffers for the demonstration at SC09 came from Calit2 Director Larry Smarr, HIPerSpace developers Falko Kuester and Kai Doerr, and networking expert Brian Dunne.
